A recent study commissioned by the Global Centre for Maritime Decarbonization (GCMD), in collaboration with Lloyd’s Register and ARUP, has identified the low readiness of ports as a significant bottleneck to the adoption of the onboard carbon capture and storage (OCCS) system as a practical decarbonization solution. While the technologies required for offloading onboard captured carbon dioxide (CO₂) exist at high maturity levels, safe operationalization of captured CO₂ transfer by trained personnel has not been demonstrated.
GCMD was formed in August 2021, with funding from the Maritime and Port Authority of Singapore (MPA) and six founding partners: BHP, BW, DNV Foundation, Eastern Pacific Shipping, Ocean Network Express, and Sembcorp Marine. Located in Singapore, GCMD was set up as a non-profit organization to support the decarbonization of the maritime industry to meet or exceed the International Maritime Organization’s goals for 2030 and 2050. Its mission is to help the maritime sector eliminate greenhouse gas (GHG) emissions by shaping standards, deploying solutions, financing projects, and fostering collaboration across sectors
The report, titled “Concept study to offload onboard captured CO₂,” found that while a limited number of ports possess the infrastructure to offload liquefied CO₂ (LCO₂), they are primarily designed to handle food-grade CO₂. The higher purity standards that accompany this use limit the interoperability of facilities to handle onboard captured CO₂.
“While pilots have successfully demonstrated numerous capture technologies onboard ships, it is still uncertain how captured carbon on merchant ships can be safely offloaded, and what the rest of the value chain looks like. This study sheds light on these challenges, and highlights recommendations to holistically address these concerns for parties interested in advancing OCCS/LCO₂ offloading concepts,” said professor Lynn Loo, GCMD CEO.
The study examined over 10 planned LCO₂ related infrastructure projects worldwide. Located near, or with transport links from, CO₂-emitting industrial clusters, these projects are likely to handle much larger volumes of captured CO₂ than that from OCCS systems; port infrastructure needed for offloading, storing, and transporting onboard captured CO₂ will likely need to be integrated with these projects for economies of scale. However, as many such projects remain in the concept phase and have not reached the final investment decision (FID), ports have not offloaded infrastructure investments. This chicken-and-egg dilemma highlights the overall infancy of the carbon value chain.
Furthermore, introducing LCO₂ offloading into complex port operations will likely impact port efficiency and operational performance. The need for additional buffer zones to address the safety concerns of LCO₂ handling and storage will also add to existing space constraints at ports and terminals.
9-month study
The 9-month-long study addresses a gap in the onboard carbon capture value chain. OCCS has recently gained traction as a potential interim solution to help international shipping meet IMO’s emissions reduction targets, with possible deliberations at future Marine Environment Protection Committee (MEPC) sessions. While achieving emissions reductions through OCCS hinges on successfully integrating a shipboard-compatible system within space constraints, addressing the fate of captured CO₂ by establishing its use or sequestration pathways is equally essential.
The study complements GCMD’s Project Remarccable (Realizing Maritime Carbon Capture to Demonstrate the Ability to Lower Emissions) by addressing the feasibility of OCCS as a practicable, end-to-end solution at scale. For OCCS systems to be operationally feasible, the industry must develop a collaborative ecosystem to enable the value chain for managing captured CO₂.
By systematically considering the needs of the entire value chain, this study evaluated four concept configurations of offloading infrastructure from a possible 162 scenarios, identified the operational standards and safety guidelines for handling LCO₂, developed models for the quantification of costs for scaled-up infrastructure, articulated workforce competency frameworks for offloading operations, and analyzed the potential regulatory scenarios needed to address the current uncertainties surrounding LCO₂ offloading from OCCS.

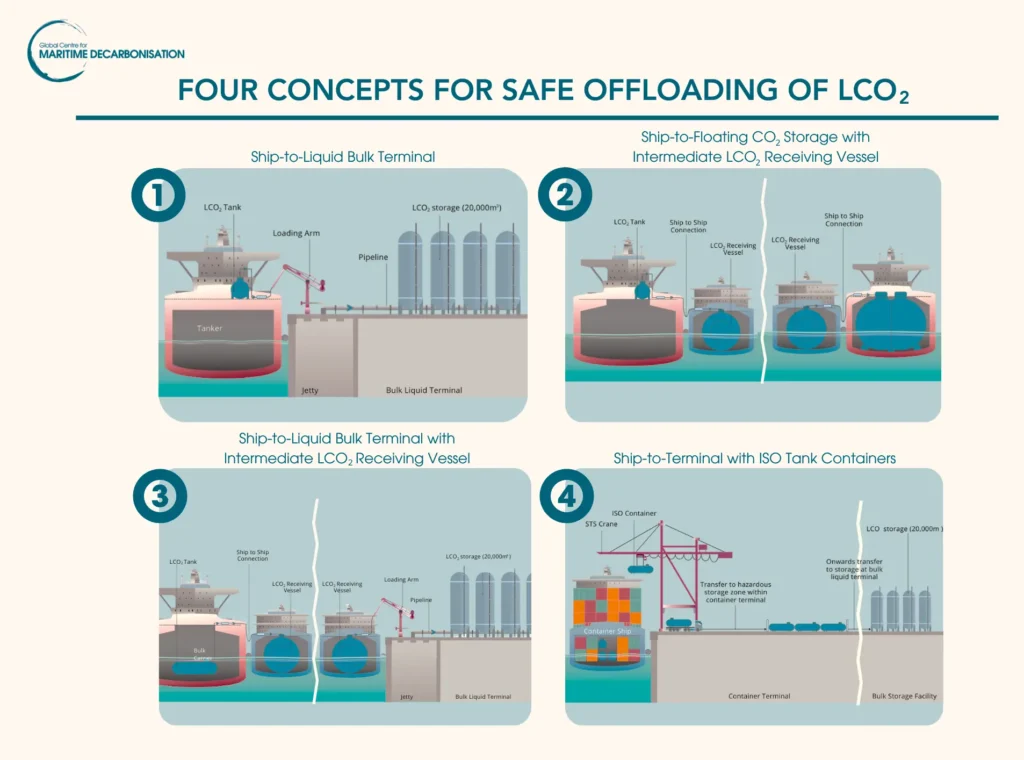

One of the key considerations is to examine how LCO₂ can be offloaded safely to the appropriate infrastructure. The study determined that captured CO₂ in its liquefied form is likely the most efficient and cost-effective onboard storage and transport option. Based on this, the study shortlisted four concepts covering key offloading modalities, such as ship-to-ship and ship-to-shore, serving as building blocks that can be combined to cover a broader range of offloading concepts.
In ranking the operability of these concepts, the study identified ship-to-ship and ship-to-shore transfers using an intermediate LCO₂ receiving vessel as the most promising modalities for offloading at scale, with captured CO₂ eventually sequestered or used as feedstock for manufacturing synthetic fuels.
Ship-to-terminal transfer of captured CO₂ stored in ISO tank containers was identified to be more compatible at minor scales and for end uses requiring higher grades of CO₂. This transfer modality is also most compatible with existing port infrastructure and, therefore, easier to pilot today.
Handling LCO₂
Handling LCO₂ onboard presents a unique set of safety challenges not commonly encountered when shipping fuel. The study offers an in-depth examination of hazards, such as asphyxiation and toxicity, if a leak or a loss of containment takes place.
Unique to CO₂ is the evaluation of its storage at conditions near its triple point, where the gaseous, liquid, and solid phases of CO₂ co-exist. Storage at or near the triple point is sensitive to impurities, and minor changes in temperature and pressure can lead to a phase change from liquid to solid CO₂, leading to hazardous situations, such as blockage in pipes and pressure build-up.
To address these hazards, a series of safety studies, including a hazard identification (Hazid) of offloading, simultaneous operations (Simops), and a coarse quantitative risk analysis (QRA), were conducted, and mitigation measures and emergency response procedures articulated for handling LCO₂.
“The maritime industry requires a comprehensive understanding of the safety and operational challenges posed by all emissions reduction technologies. This study, which focused on port readiness and considerations for the safe handling and offloading of LCO₂, addresses some of the gaps that exist in the carbon capture value chain and will support industry stakeholders in making informed investment decisions around carbon capture solutions and the creation of regulatory and operational guidelines,” said Nick Brown, LR CEO.
For his part, Robert Cooke, design lead of ARUP, shared, “As a result of the study, it has been promising to see how transferable existing CO₂ industrial knowledge is to an offloading application. ARUP brought together energy and maritime capabilities to outline the concepts for onboard captured CO₂ offloading and develop how this new process can practically and safely integrate into busy port environments. We look forward to seeing the technologies and implementation develop into effective marine decarbonization solutions.” (Story and graphic courtesy of GCMD)
